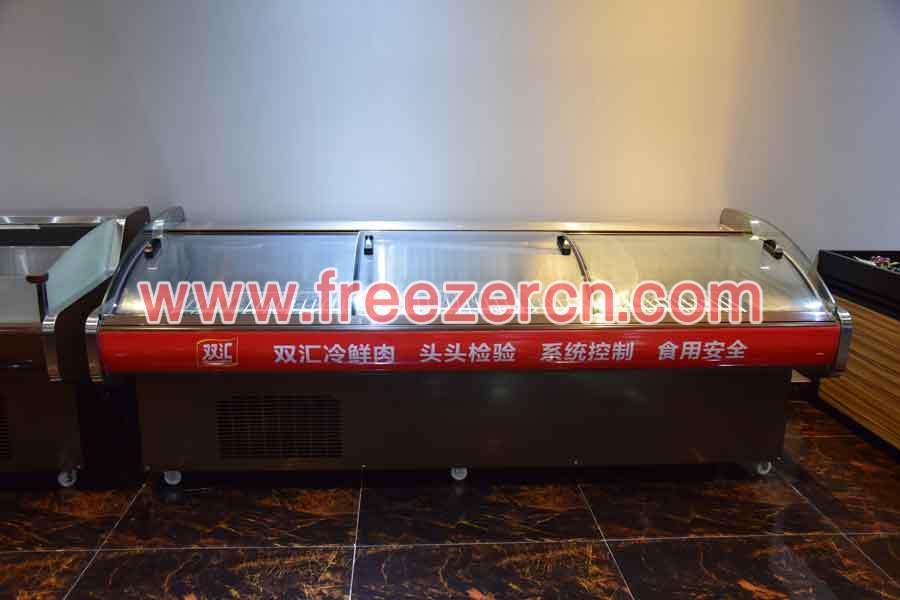

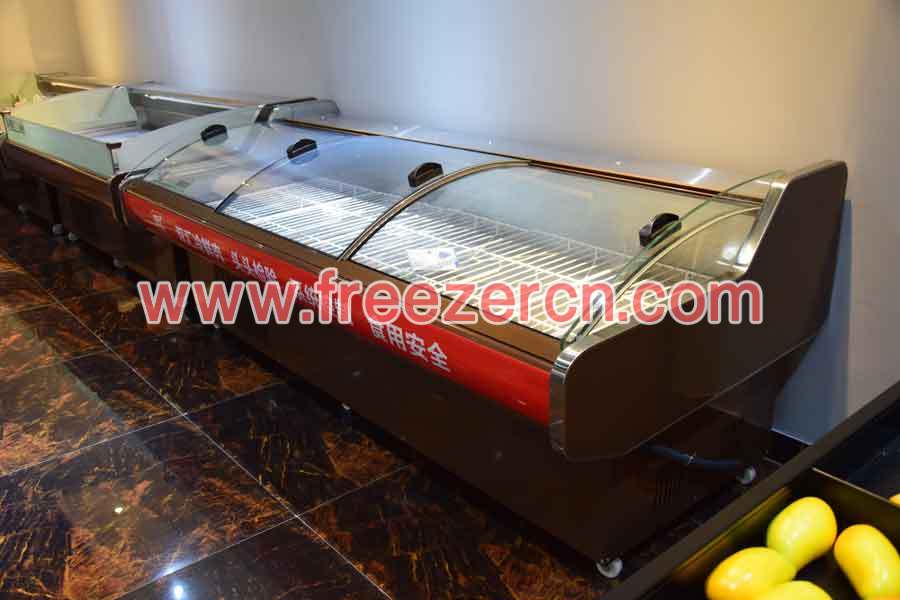

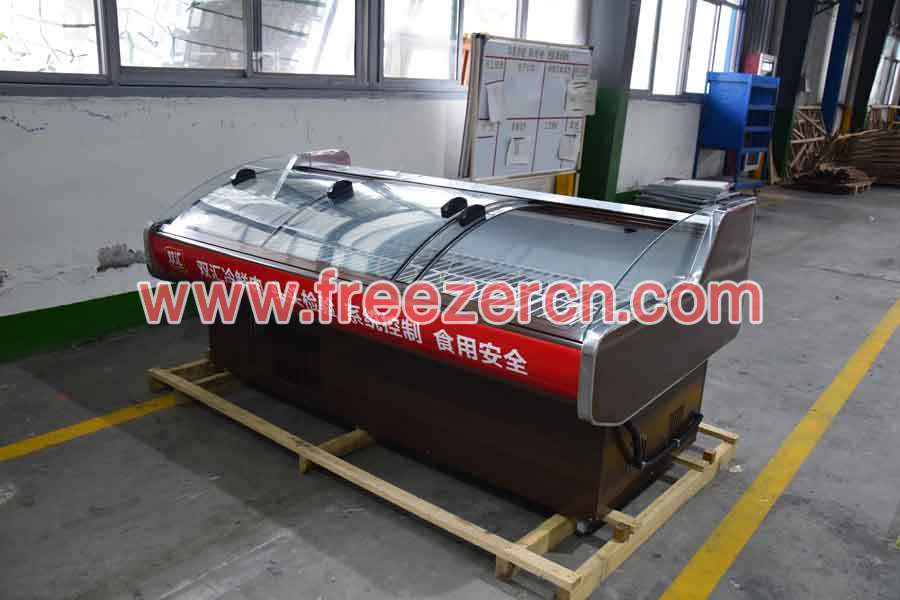

SC-1.5 flat arc door straight cold meat cabinet

【 Product parameters】(Size can be customized according to customer requirements.)

Product name	Model	Dimensions(L×W×H)mm	Inner box size(L×W×H)mm	volume(L)	Exhibition(m2)	Power	power consumption（KW.h/24h）	temperature(℃)
Flat arc door straight cold meat cabinet	SC-1.5	1480×1100×930	1400×870×250	260	1.20	220V/50HZ	2.4	0~10
Flat arc door straight cold meat cabinet	SC-2.0	1980×1100×930	1900×870×250	353	1.60	220V/50HZ	3	0~10
Flat arc door straight cold meat cabinet	SC-2.5	2480×1100×930	2400×870×250	446	2.00	220V/50HZ	3.4	0~10

【 Product parameters】(Size can be customized according to customer requirements.)

Product name	Model	Dimensions(L×W×H)mm	Inner box size(L×W×H)mm	volume(L)	Exhibition(m2)	Power	power consumption（KW.h/24h）	temperature(℃)
Flat arc door air curtain fresh meat cabinet	FMS-N1500SC	1480×1100×930	1400×758×280	149	0.98	220V/50HZ	6	-1~7
Flat arc door air curtain fresh meat cabinet	FMS-N2000SC	1980×1100×930	1900×758×280	202	1.41	220V/50HZ	7	-1~7
Flat arc door air curtain fresh meat cabinet	FMS-N2500SC	2480×1100×930	2400×758×280	254	1.69	220V/50HZ	8	-1~7

Outer box (side panel) material: pre-coated plate + stainless steel + tempered glass
Inner box material: stainless steel
Lighting method: LED
Energy saving mode: tempered glass door
Defrost mode: direct cold artificial defrosting, air cooling automatic cream

1. Specially for display cooked food, deli, bean food etc in supermarket, store and other commercial sites.

2. With curved glass on top, saving energy.

3. Front glass can be closed, sliding , it’s up to you. Back sliding, easy for showing and selling goods.

4. Best quality raw material are used, inside is 201 S/S, outside is powder coated steel sheet, keeps a longer service life.

5. 50mm Dense polyurethane foam body provides fine heat insulting performance.

6. Digital temperature controller, automatic defrost, more easy and precise.

7. Brand name compressor, copper evaporator and condenser, high quality fan motor keeps more even and stable
